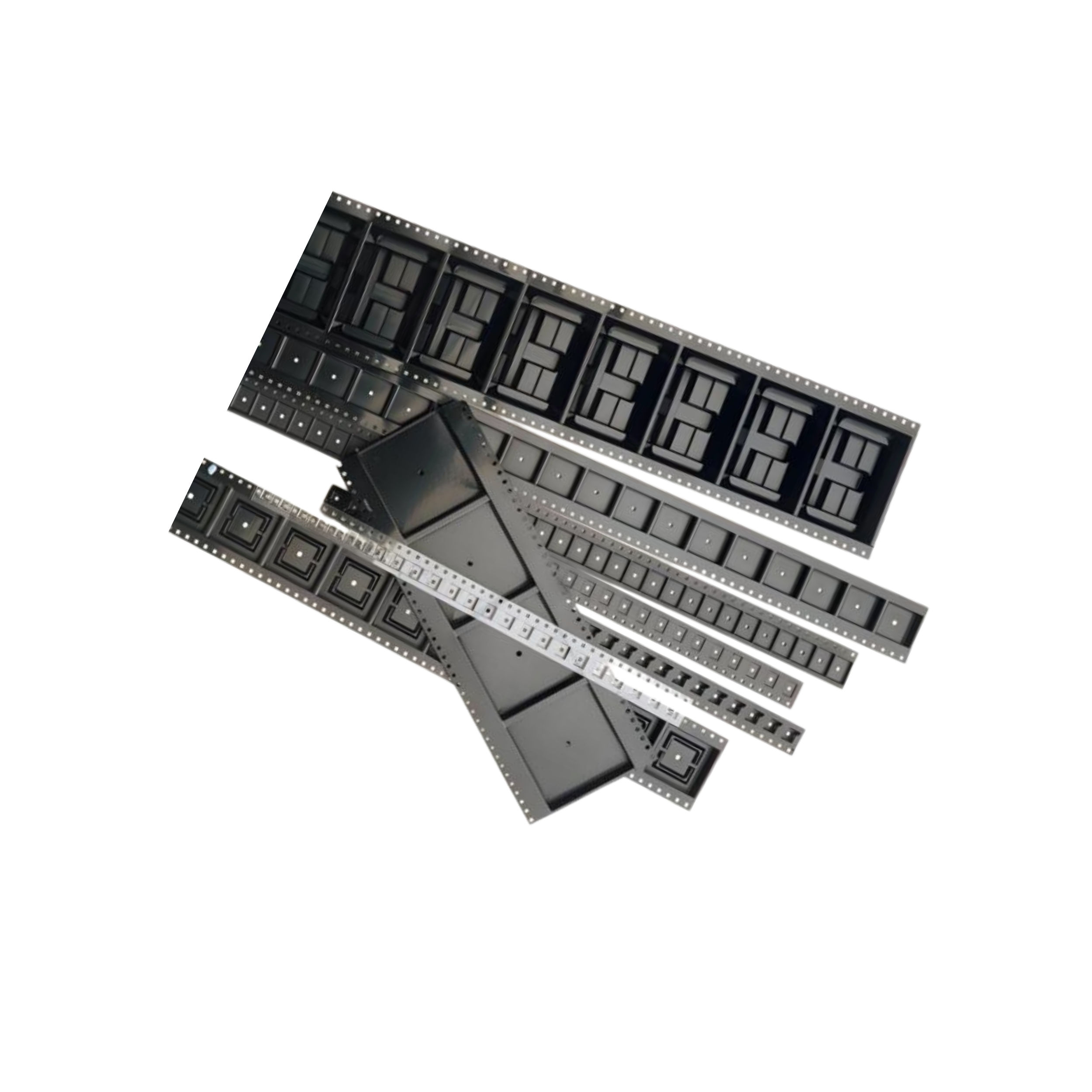

Anti-static Carrier Tape
Manufactured using high-precision molds, these tapes are widely used for SMD and electronic component automation in taping, packaging, and transportation. They offer excellent dimensional stability, anti-static properties, and heat resistance, ensuring safe and stable component handling.
Item | Specification Description |
|---|---|
Material | PS / PET and other anti-static materials |
Tape Width (W) | 8mm / 12mm / 16mm / 24mm / 32mm etc. |
Hole Pitch (P) | 2mm / 4mm / 8mm (compliant with EIA standards) |
Component Pitch (T) | Customized per customer requirements |
Cavity Size (A×B×K) | Customized according to component size (unit: mm) |
Anti-static Level | Surface resistance: 10⁶~10⁹ Ω (optional) |
Heat Deformation Temp | ≥ 85°C (varies by material) |
Compatibility | EIA-481 standard |
Packaging | Roll (small or large) |
