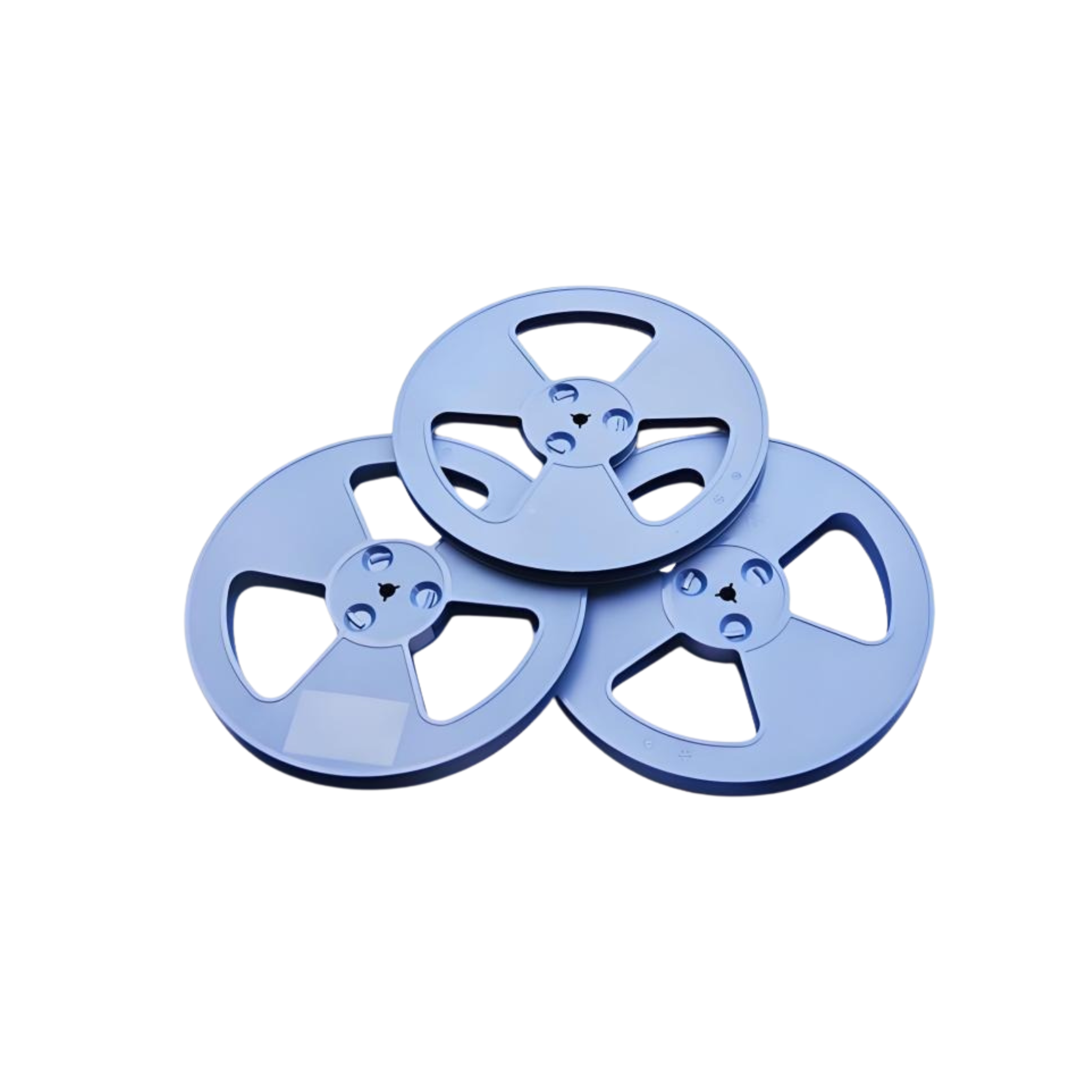

Anti-static Plastic Reels
Used for SMD, axial, radial electronic component taping, transportation, and storage. These reels feature high mechanical strength and dimensional stability. They are compatible with the EIA-481 standard and suitable for use with high-speed placement equipment.
Item | Specification Description |
|---|---|
Outer Diameter (OD) | Φ7" / Φ13" / Φ15" etc. |
Inner Diameter (ID) | Φ13.0 ± 0.2mm / Φ21.0mm (optional) |
Hub Width | 8mm / 12mm / 16mm / 24mm / 32mm / 44mm etc. |
Flange Thickness | 9mm / 10mm / 13mm / Customizable |
Material | PS / HIPS / Anti-static PS etc. |
Surface Resistance | 10⁶ – 10⁹ Ω |
Color | Blue / Black / White / Gray / Transparent / Custom |
Load Capacity | 0.5–3kg (depending on structure and material) |
Environmental Compliance | RoHS / REACH |
