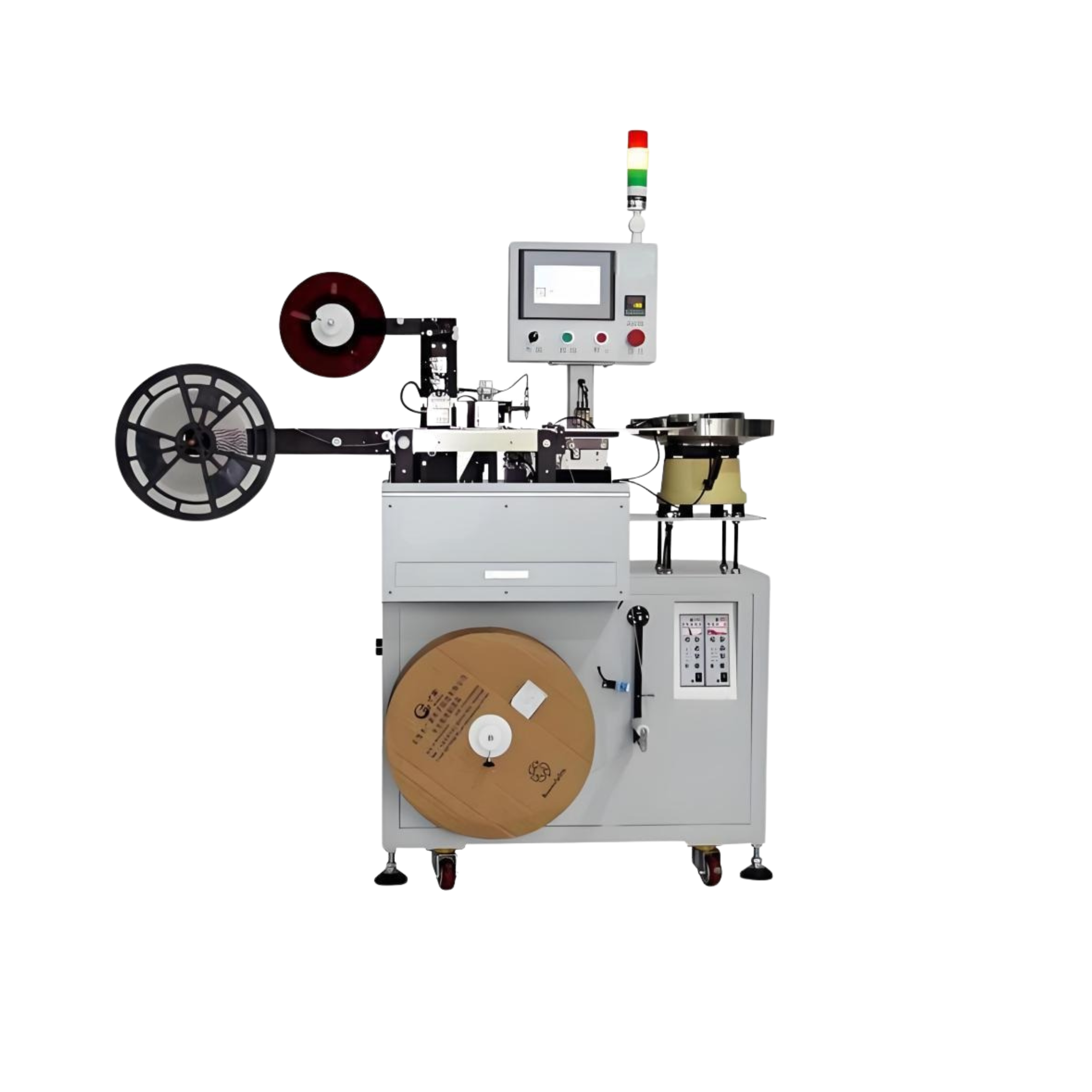

Auto Tape and Reel Packing Machine
Item | Parameter | Description |
|---|---|---|
Feeding Method | Vibratory bowl + suction nozzle | |
Tape Width | 8mm / 12mm / 16mm / up to 56mm (optional) | Supports standard carrier tape sizes |
Packing Speed | 3,000–10,000 pcs/h | Varies by product size and requirements |
Control Method | PLC control + touchscreen | Chinese/English interface switchable |
Power Supply | AC 220V / 50Hz | Customizable |
Power Consumption | Approx. 500W | Low energy consumption |
Air pressure | 0.4–0.6 MPa | For suction, sealing, etc. |
Dimensions | 1200 × 800 × 1750 mm | Subject to actual configuration |
Weight | 250 kg | Subject to actual configuration |
