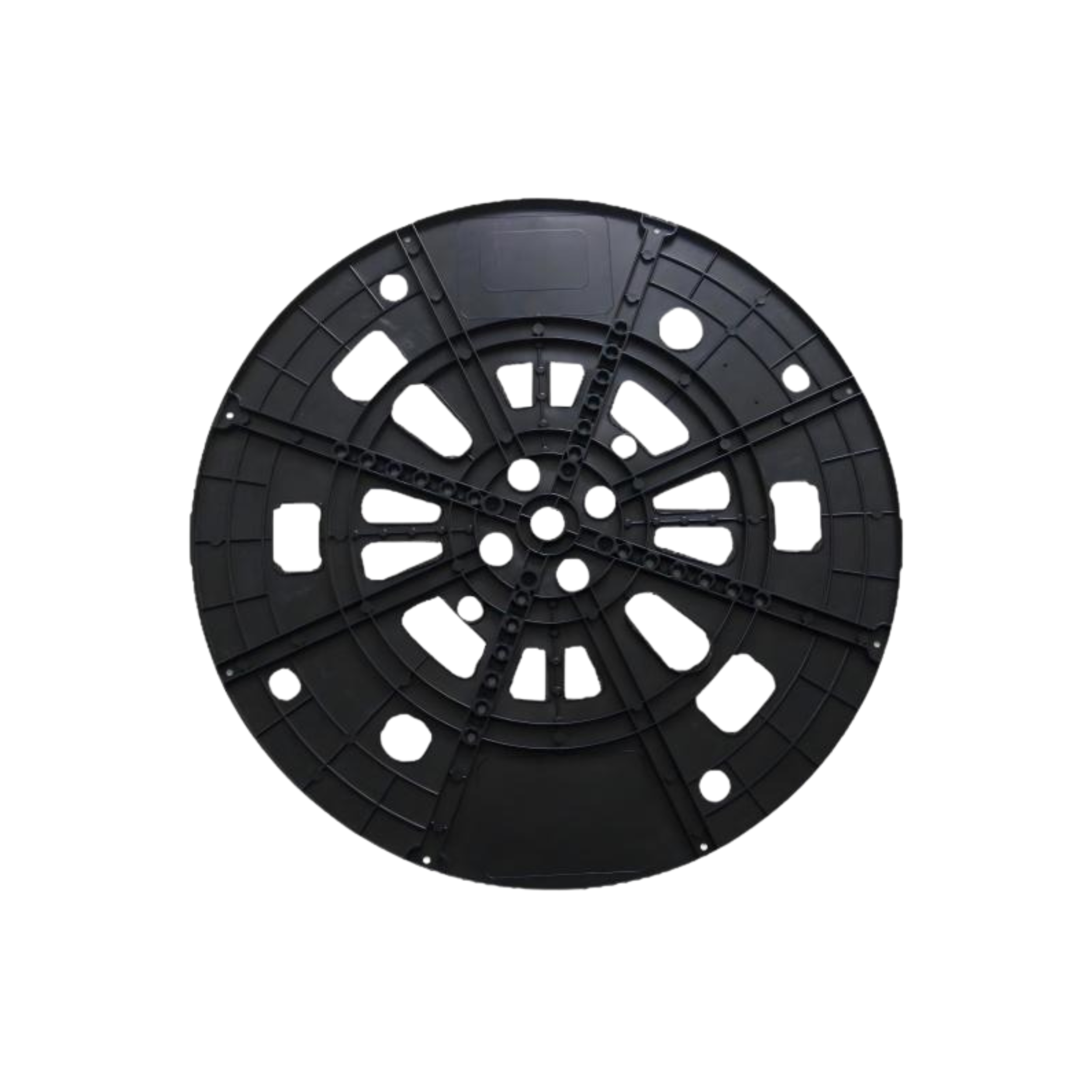

Large Black Plastic Reel
Primarily used for automated taping, coiling, and transport of various terminals (e.g., pins, sockets, crimp terminals). It offers precise dimensions and a stable structure, making it suitable for high-speed machines and auto-insertion equipment. RoHS compliant and available in both anti-static and static dissipative variants. Widely used in the automotive, electronics, appliance, and communications industries
Item | Specification Description |
Outer Diameter | 500mm / 550mm / 600mm / Custom |
Inner Diameter | Φ13.0mm / Φ21.0mm (compatible with auto coiling) |
Hub Width | 15 – 200mm customizable |
Flange Thickness | 10mm / 13mm / 15mm / Customizable |
Material | PS / ABS / Anti-static PS / Static-dissipative ABS |
Surface Resistance | 10⁶ – 10⁹ Ω |
Color | Blue / Black / White / Gray / Custom |
