Riveting machine

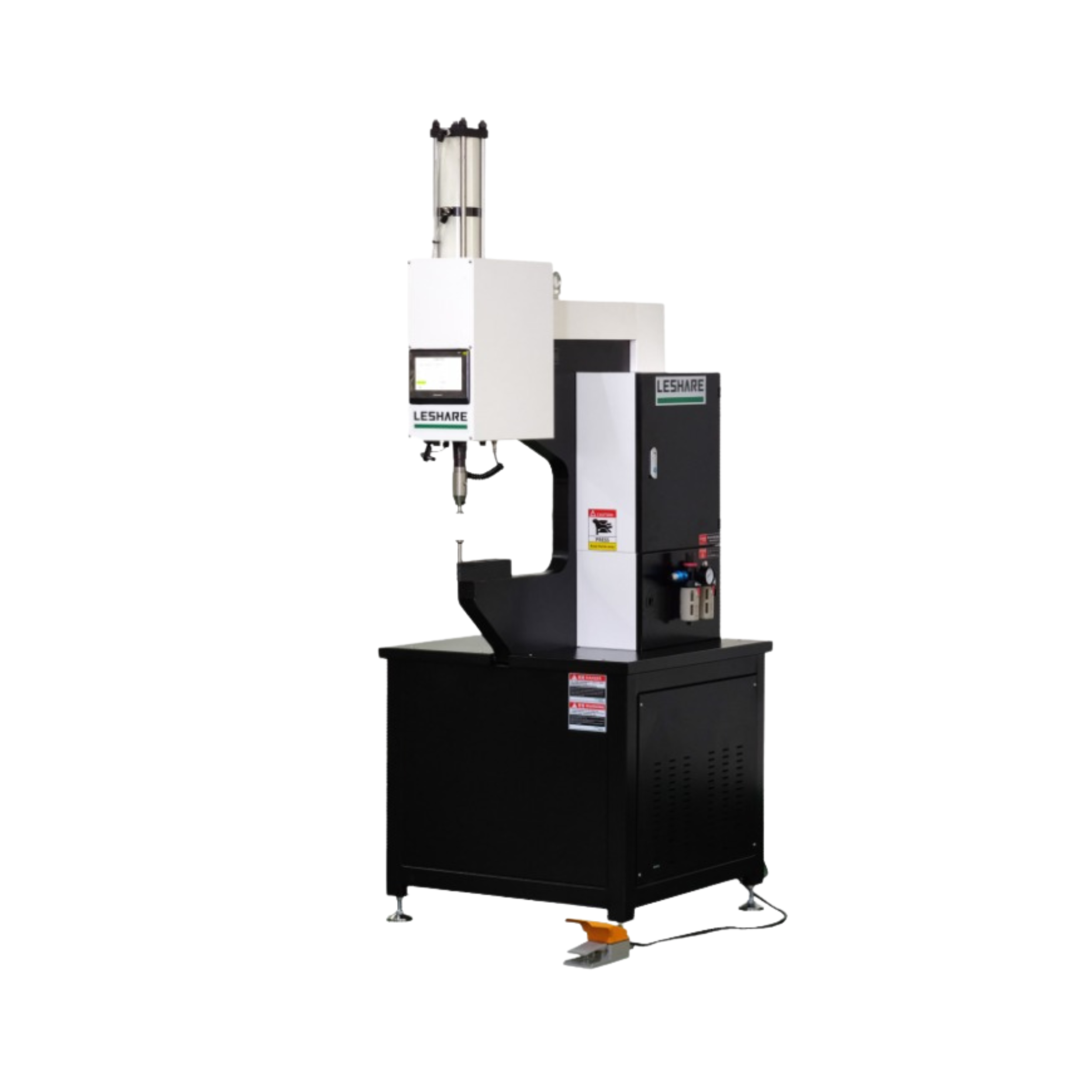

Automatic riveting machine MODEL: JH8-500C
Electronic control with touch screen
Jh8-500c Pneumatic Riveting Machine
Output Force: 8 Tons
Throat Depth: 500 mm
CNC Touchscreen Control
Main Features:
√ The machine uses an air-hydraulic booster cylinder as the actuator, offering low energy consumption and high speed.
√ Equipped with an intelligent operating system, it is easy to operate and requires minimal training.
√ High cost-performance ratio, with an optional automatic feeding system.
√ Suitable for riveting most standard fasteners.
Maximum Riveting Capacity:
Press-fit studs: ≤ M8
Press-fit nuts: ≤ M12
Press-fit standoffs: ≤ M10
(Material: Carbon Steel)
Specifications | |
MODEL | JH8-500C |
Maximum pressure | 80Kn |
Reciprocating stroke | 100mm |
Riveting frequency | 1S/次 1S/time |
Overall dimension | 1100mm*840mm*2210mm |
Throat depth | 500mm |
Throat height | 340mm |
Cylinder stroke | 100mm |
weight | 450Kg |
input voltage | 220V |
Equipment power | 50W |
Tank capacity | / |
Intake air source | 3-8bar |
Part list | |
Cylinder | LESHARE 8ton |
Anti-pressure mechanism | LESHARE |
Pneumatic components | AirTAC |
Electrical components | CHINT |
PLC | INOVANCE |
touch screen | INOVANCE |
Pressure sensor | SINOSENSOR |
