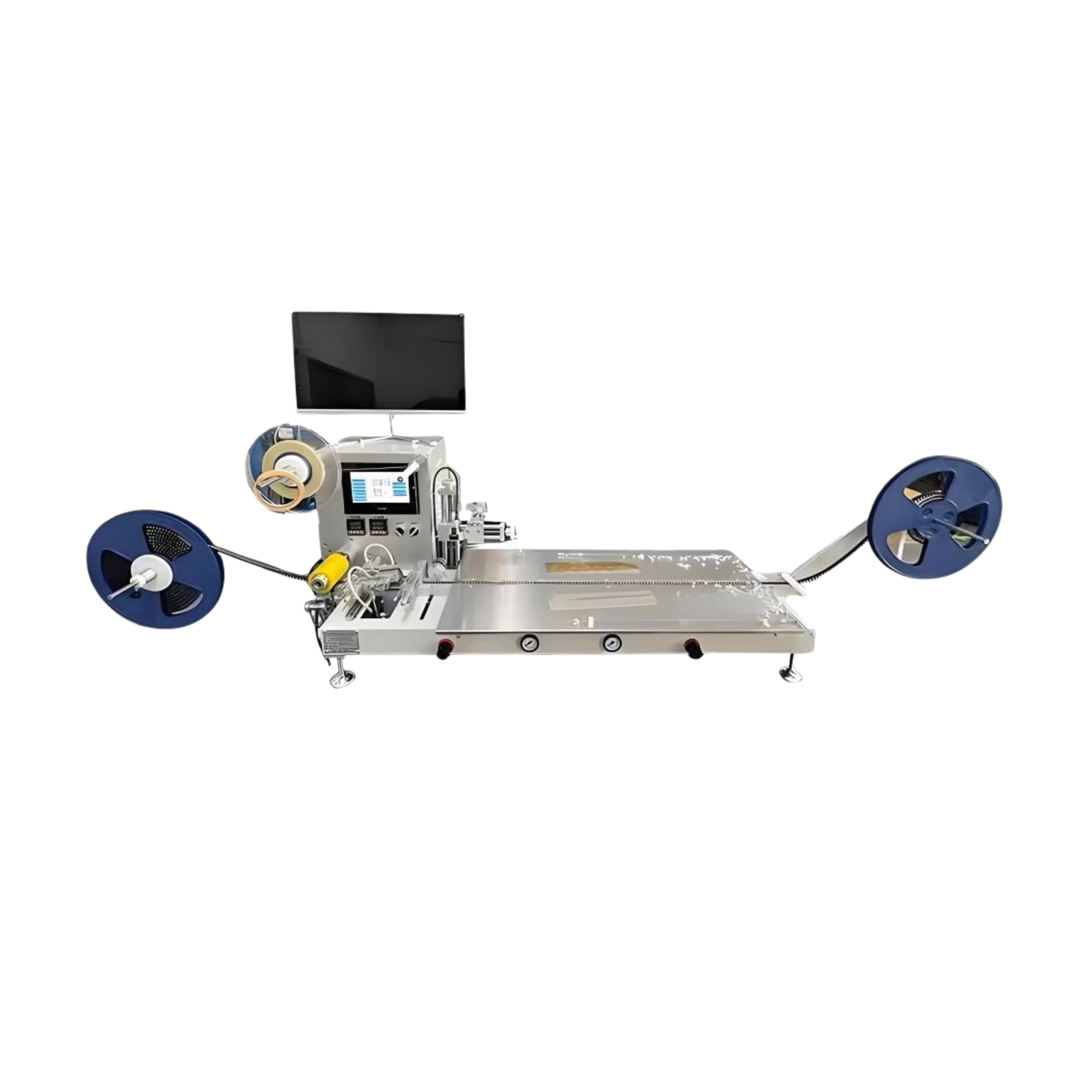

Semi-auto Tape and Reel Packing Machine
This semi-automatic taping machine is suitable for the tape and reel packaging of electronic components (such as resistors, capacitors, diodes, etc.) and hardware products. It enhances production efficiency and ensures product consistency. Ideal for small to medium batch production, it is easy to operate, compact in size, and compatible with various component sizes.
Item | Parameter | Description |
|---|---|---|
Feeding Method | Manual feeding | |
Tape Width | 8mm / 12mm / 16mm / up to 56mm (optional) | Supports standard carrier tape sizes |
Packing speed | 1000–3000 pcs/h | Depends on manual operation |
Control Method | PLC control + touchscreen | Chinese/English interface switchable |
Power Supply | AC 220V / 50Hz | Customizable |
Power Consumption | Approx. 200W | Low energy consumption |
Air Pressure | 0.4–0.6 MPa | For sealing cylinder, etc. |
Dimensions | 2330 × 600 × 550 mm | Actual dimensions vary by model |
Weight | 50 kg | Easy to move and maintain |
